LYNK II
Communication Gateway - Mobile


We want to hear from you.

Our global sales team, located in major centres around the world, is standing by to provide guidance and advice as well as answer specific questions about all of your unique applications.

GLOBAL HEADQUARTERS
#7-13511 Crestwood Place, Richmond, BC Canada V6V 2E9
Tel: +1-778-776-3288   Fax: 604-248-0175



Get a Quote
COMPATABLE WITH LYNK ACCESS

LYNK II Communication Gateway aggregates and displays the State of Charge for AES PROFESSIONAL and AES LiFePO4 batteries.

Unlock the full potential of these lithium batteries by integrating them with inverter-chargers, on and off-board chargers, displays, load centers, motor controls, PLCs, and telematics to optimize system performance. Improve system integration using multiple communication interfaces and CAN-based protocols, including RV-C*, NMEA 2000*, CANopen, J1939, or serial CAN.

The LYNK ACCESS Software for LYNK II includes device programming, remote access, battery digital signal simulation, and data analysis to reduce development time and effort. Turn a good system into a great one with ultra-fast charging, real-time status, predictive equipment control and diagnostics.

Product Features

Status View
  • At-a-Glance State of Charge LED Indicator
  • Communication status
Ports
  • LYNK Port - RJ45
  • LYNK Port - IEC (M12 -5 PIN)
  • CAN Out - Ethernet RJ45
  • CAN Out - Phoenix
  • USB Device - Type B- Mini
  • Power Inputs Nominal - Phoenix 13-90 V, LYNK Port 12 V, USB 5 V
Memory
  • SD Memory Card
Programmable Relays
  • Phoenix: NO, NC COMM (1) / NO, COMM (2)
Parallel Batteries
  • A single LYNK Gateway supports up to 20 parallel batteries
Real-Time Data
  • State of Charge (SoC), voltage, temperature and battery status is communicated in real time to on-board devices
  • Charge voltage and current targets, voltage, temperature, current, and battery diagnostics
Full Compatibility
  • Battery related settings are automatically programmed for multiple brands of industrial chargers
  • Configurable CANopen TPDOs and behaviour
Maximize the Battery
  • Internal cell balancing is optimized, enabling the highest usable capacity and true 100% depth of discharge over the entire life of the battery
Faster Charging
  • Up to 25% faster 0% to 100% SoC charging with dynamically managed parameter communication between the battery and the industrial charger
Quick Install
  • Fast installation
  • No special tools
  • Plug-and-play
Simple Setup
  • Network batteries with other devices
  • Configure for power conversion devices
  • Monitor and troubleshoot with LYNK ACCESS
Certification Standards
  • CE
Communication
  • Configurable - CANopen, Serial CAN, J1939, RV-C*, NMEA 2000*
Control External Devices
  • Trigger relays using battery SoC and battery current to control external devices

LYNK ACCESS PC Software

  • Configure LYNK Device
  • Monitor Discover Energy Systems Lithium Batteries
  • Troubleshoot and monitor Discover Energy Systems Lithium batteries
  • Simulate and validate integration of Discover Energy SystemsLithium Batteries
LYNK ACCESS
LYNK NETWORK SUPPORT
LYNK ACCESS DEVELOPER PAGE

The LYNK II Mobile Industrial Advantage

LYNK II Communication Gateway

LYNK II aggregates and displays the State of Charge for LITHIUM PROFESSIONAL and AES LiFePO4 batteries to allow the BMS to communicate with on and off-board chargers, displays, load centers, motor controls, PLCs, and telematics to optimize system performance.

LYNK II SELL SHEET

Click the link below to download the LYNK II Industrial Sell Sheet.

VIEW ALL LYNK II RESOURCES

Product Registration

Click on the REGISTER PRODUCT button and use the form to register your product(s) to validate your warranty.

Register Product

AES LiFePO4 Mobile/Industrial

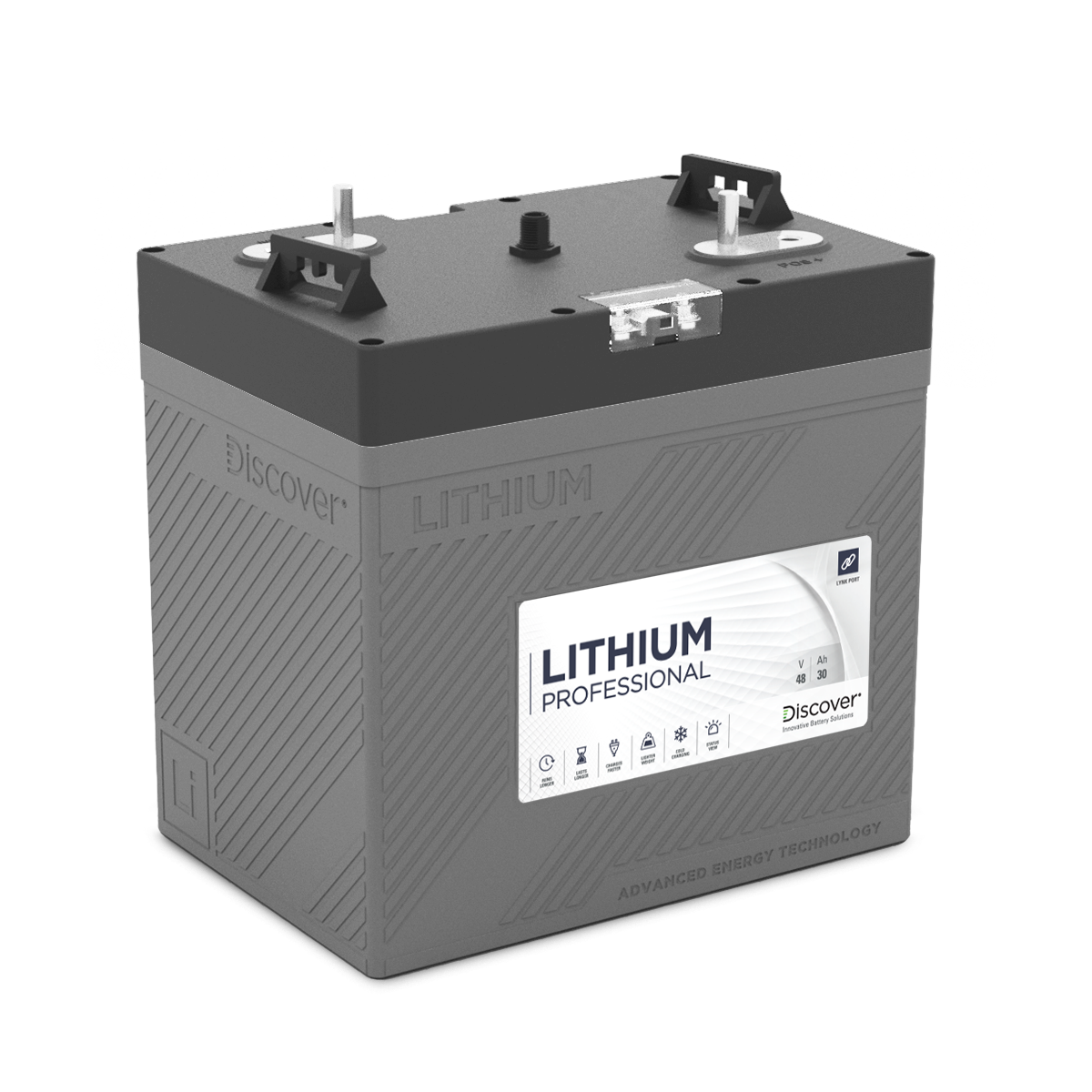

AES Professional

Battery
Compatibility

Available Configurations for
Hybrid Inverter Chargers

  • Serial CAN
  • CANopen
  • RV-C
    • SPE Chargers
    • CAN Devices
    • Victron Energy Color Control GX, Venus GX, VE.CAN Devices

      Additional Communication Product


      LYNK LITE

      LYNK LITE Communication Gateway aggregates and displays the State of Charge for AES PROFESSIONAL and AES LiFePO4 batteries in a compact package suitable for in-line integration in motive machine battery compartments.

      View Product
